Liquid-cooled 76-degree V-4 The Interceptor VFR1200FA DCT

2010 Honda Interceptor VFR1200FA DCT - Canada Specifications
MSRP: $TBA USD

Engine Type Liquid-cooled 76-degree V-4 with asymmetrical front/rear cylinder layout
Displacement 1,237 cc
Bore & Stroke 81 mm x 60 mm
Compression Ratio 12:1
Valve Train Chain-driven SOHC Unicam, 4 valves per cylinder
Fuel Delivery PGM-FI electronic fuel injection
Transmission Dual Clutch Transmission with two automatic shift modes and a manual shift mode via paddle-style shifters
Final Drive Shaft
Front Suspension 43 mm cartridge fork with spring preload adjustability; 120 mm (4.7 in.) travel
Rear Suspension Pro Arm single-side swingarm with Pro-Link single gas-charged shock with remote spring preload adjustability and rebound damping adjustability; 130 mm (5.1 in.) travel
Tires 120/70ZR - 17 radial front; 190/55ZR - 17 radial rear
Brakes Front dual 320 mm discs with six-piston calipers; rear single 276 mm disc with two-piston caliper. Combined Braking System with ABS (Anti-lock Braking System)
Seat Height 815 mm (32.1 in.)
Seating capacity Two
Wheelbase 1,545 mm (60.8 in.)
Curb Weight 278 kg (613 lb). Including required fluids and full tank of gas – ready to ride
Fuel Capacity 18.5 litres
Colour Silver Metallic

Silver Metallic Honda Interceptor VFR1200F

Chassis/Suspension

The patented layered fairing design creates a uniquely beautiful shape and, at the same time, optimal airflow and heat management. The fairing incorporates two layers. Air entering between the layers and through two oval-shaped spaces in the front of the fairing is channelled in exactly the directions needed to enhance the bike's stability at higher speeds. Plus, by channelling air through smaller apertures before it reaches the radiators and thereby increasing its velocity, engine cooling is optimized and the hot, exhausted air is carried quickly away from the rider and passenger for a cooler, more comfortable ride. The heat generated by the engine is also channelled away to keep hot air away from the rider.

Honda Pro-Arm single-side swingarm with single gas-charged shock features a handy remote spring-preload adjuster, rebound damping adjustability, and 130 mm (5.1 inches) of travel. At the front the

VFR1200FA boasts a stout, sport-oriented 43 mm inverted cartridge fork with spring preload adjustability and 120 mm (4.7 inches) of travel.

The VFR1200FA is equipped with a sophisticated braking system that's ideal for all-round sportbike use. Powerful new six-piston calipers for the front and a two-piston caliper at the rear act on large full-floating discs (320 mm front; 276 mm rear). Honda's Combined Braking System creates the optimal balance of front and rear braking forces, while the compact and lightweight Anti-lock Braking System (ABS) lets you brake with confidence on even difficult surfaces.

Additional Features

New-technology seat construction permits a higher level of seat shaping and forming detail for excellent rider and passenger comfort and a sleek look.
Integral saddlebag mounts come standard on both versions of the VFR1200FA.
New painting technologies, specially developed at Honda's new high-tech Kumamoto factory, result in a level of finish far above normal production standards .
The handlebar and the layout of the controls are the result of careful study of ergonomics and rider needs. The designers looked at the time required to reach controls comfortably and the ease of operation— particularly during cornering. As a result, the VFR1200FA has new handlebar switches and a new layout with reversed horn and indicator controls. The indicator switch shape is designed around natural thumb movement for effortless operation.

CRF450R Wallpaper

CRF450R Specifications and Price
CRF450R Features

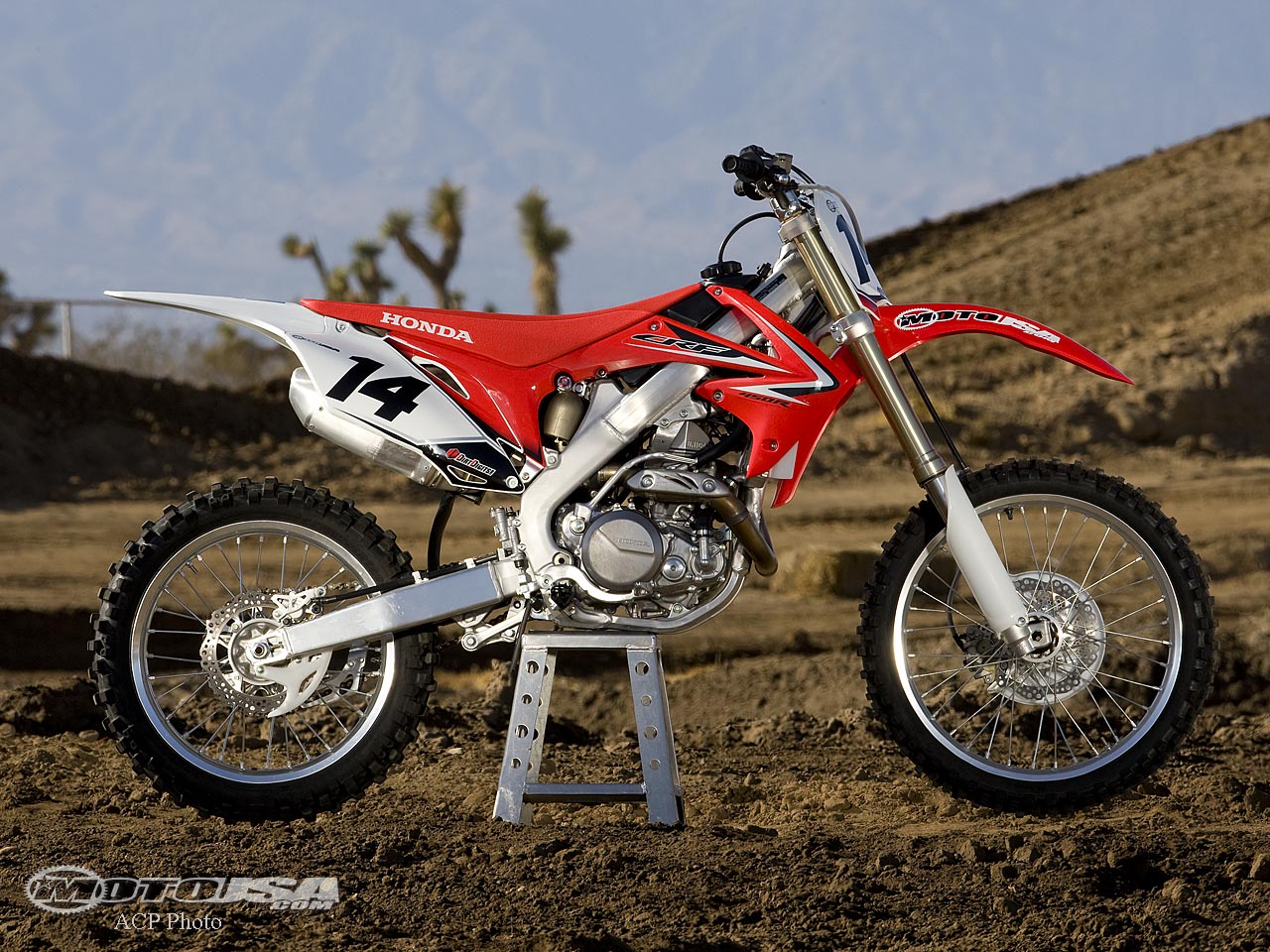

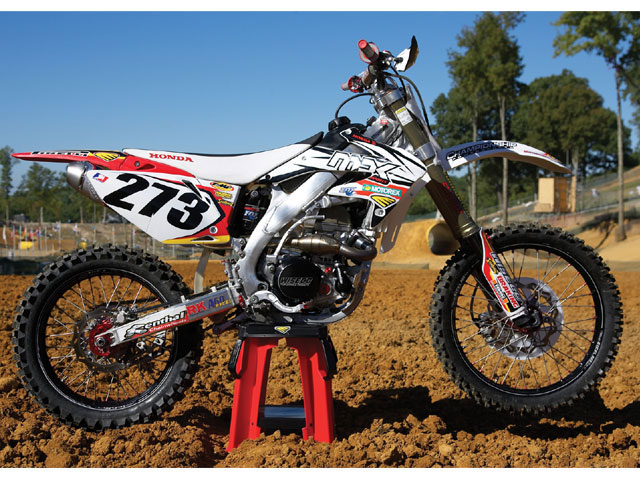

449cc Honda CRF450R Specifications and Price

2011 Honda CRF450R - United States of America Specifications
USA MSRP $8,199. Available in Red beginning October 2010. USD
Honda CRF450R Wallpaper

Model: CRF450R
Engine Type: 449cc liquid-cooled single-cylinder four-stroke
Bore and Stroke: 96mm x 62.1mm
Compression ratio: 12.0:1
Valve Train: Unicam, four-valve; 36mm intake, titanium; 30mm exhaust, steel
Induction: PGM-FI, 50mm throttle body
Ignition: Full transistor with electronic advance
Transmission: Close-ratio five-speed
Final Drive: #520 chain; 13T/48T
Suspension Front: 48mm inverted KYB Air-Oil-Separate (AOS) with rebound and compression damping adjustability; 12.2 inches travel
Rear: Pro-Link KYB single shock with spring preload, rebound damping adjustability, and compression damping adjustment separated into low-speed and high-speed; 12.5 inches travel
Brakes Front: Single 240mm disc with twin-piston caliper
Rear: Single 240mm disc
Tires Front: 80/100-21
Rear: 120/80-19
Wheelbase: 58.7 inches
Rake (Caster angle): 26° 54'
Trail: 114.5mm (4.5 inches)
Seat Height: 37.6 inches
Ground Clearance: 13.1 inches
Fuel Capacity: 1.5 gallons
Color: Red
Curb Weight*: TBD
*Includes all standard equipment, required fluids and full tank of fuel--ready to ride.

Fuel Injection Honda CRF450R Features

The Honda CRF450R Features
Honda CRF450R Wallpaper

Rear Suspension - The rear suspension gets a new linkage to help give the CRF450R better handling and tracking, and a more balanced suspension performance. The fully adjustable Pro-Link® rear suspension sports an exclusive KYB® integrated reservoir, and a large 50mm rear shock damper for improved suspension action under the toughest riding conditions.

Batteryless Fuel Injection - The CRF450R was our first MX bike with fuel injection, and it's always been the standard in the class. For 2011 we've made it even better, by giving it a new throttle body and new ECU programming for crisper throttle control and even easier starting.

Lightweight Aluminum Frame - The CRF450R's race-inspired twin-spar aluminum frame revolutionized MX chassis tech when it first appeared in 1997 on the radical CR250R and has continued to do so every year since. Our latest frame boasts optimized torsional and lateral rigidity with minimized weight and maximum durability, ensuring razor-sharp handling performance. The updated subframe for 2011 takes the concept even further.

449cc Unicam® Engine

Works-Style Brakes - Honda's MX bikes have always had great brakes on the track, and the 2011 CRF450R continues that tradition. Discs front and rear with factory-spec master cylinders help haul you down fast, so you can outbrake the other guy into the turns.

Front Suspension - Kayaba front suspension features a sophisticated inverted Air-Oil Separated (AOS) system with an exclusive Honda 48mm-diameter fork, adjustability for rebound and compression damping, and 12.2" of travel. New-for-2011 settings match it up to the new rear suspension.

Honda Progressive Steering Damper - We've taken the revolutionary HPSD and made it even better for 2011 by giving it a bigger 24mm piston. You get more damping when you need it, but the HPSD operation is still completely transparent when you don't.

94 dB Exhaust System - The CRF450R's new silencer teams with the bike's revised fuel-injection throttle body and injector to help fatten up the low- and midrange.

the CRF250R Really motorcross

Despite winning numerous comparison tests and awards in 2010, the CRF250R enters the new season sporting a number of improvements that will help it continue its winning ways. A new Honda Progressive Steering Damper (HPSD) with a larger, 24mm damper piston aids tracking precision, and new suspension settings front and rear help give this stellar-handling machine even better chassis balance for 2011. Changes to engine tuning now give the CRF250R a stronger bottom-end and midrange hit, and this model also features a new muffler that meets the 94-decibel sound level required by some racing organizations in 2011.

Are you a winner? Do you want to ride like one? Then you better get yourself on a 2011 CRF250R. We’ve given our quarter-liter wonder some serious upgrades for 2011 and it likes to win.

Because there’s a new 94dB exhaust rule this year, we gave the CRF250R a new muffler. But we also gave it a new ECU settings which, combined with the exhaust, gives you more usable power, especially in the midrange. It’s a win-win situation: A quieter bike and one that’s even easier to ride.

Like the CFR450R, we also gave the CRF250R a new Honda Progressive Steering Damper (HPSD) with a new, bigger 24mm piston. That gives you more damping when you need it, but still remains as transparent as ever when you don’t. Better handling, better balance, better tracking, especially at the limits of performance: the new 2011 CRF250R has it all.

Honda CRF450R Friendly Class MX Bikes

The Class of the Open-Class MX Bikes: Honda CRF450R
Long regarded as the bike of choice in the big-bore motocross division, the 2011 CRF450R incorporates a host of improvements that will help this bike retain its standing as the yardstick by which all others in the class are compared. Various tweaks to the engine tuning broaden the already prodigious powerband-more low-end pull and midrange grunt-while also enhancing throttle response via a new throttle body.

In addition, revised suspension linkage and settings yield improved control, increased ride plushness and enhanced rear-wheel traction. A new Honda Progressive Steering Damper (HPSD) with a larger damper piston (24mm versus 20mm) produces even better tracking traits than before. In addition, the CRF450R now features a newly designed muffler that meets the sound levels of 94 decibels required by some racing organizations in 2011, making it competition-legal right off the showroom floor. All this and more make the 2011 CRF450R a shoo-in to maintain its dominant role among open-class MX bikes. MSRP $8,199. Available in Red beginning October 2010.
